The Bottle Rocketeer


Back ground to the project

Ages ago I came across Johnny Jetpack, Been at the back of my mind ever since.

so I'm making a stunt dummy and see if I can get it to 'jump' over my house using only water bottle rockets.

WHY? because I want to and...... WHY NOT?!

Home


 Initial drawings and ideas

    Make a stunt dummy, with a few ideas of my own thrown in. Make a twin bottle rocket pack,; two 2L bottles strapped together. Attach rocket pack to stunt dummy. Pressurise and away we go! what could go wrong.........

 The dummy is a Gaffa tape 'skin' (made from an idea in the video on You Tube). The internal 'skeleton' is pipe insulation and the 'muscles and fat' is bubble wrap.

The rocket pack release is rubber bungs, schrader valves and 6mm metal rod, the idea is from here


Pictures

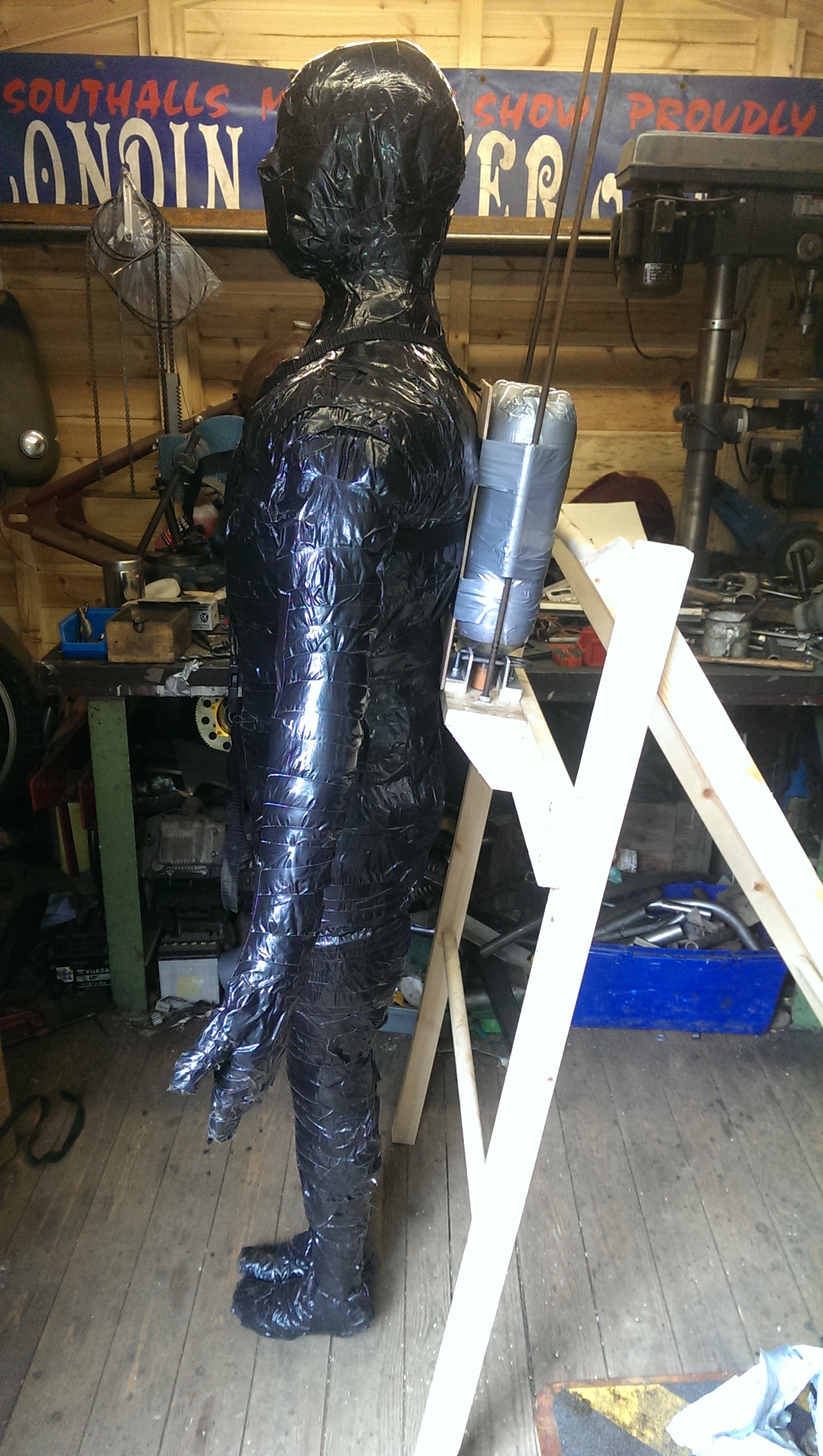

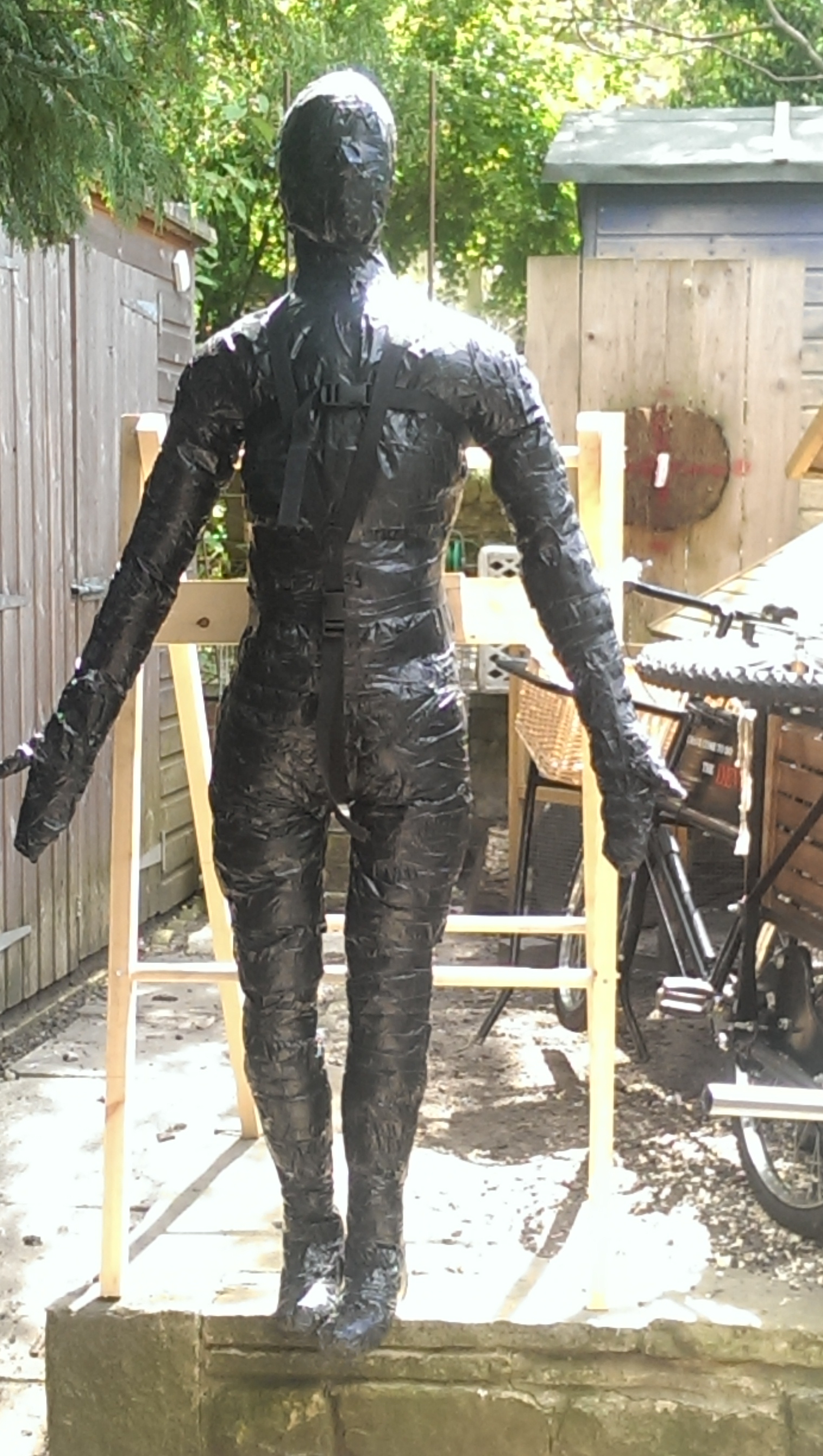

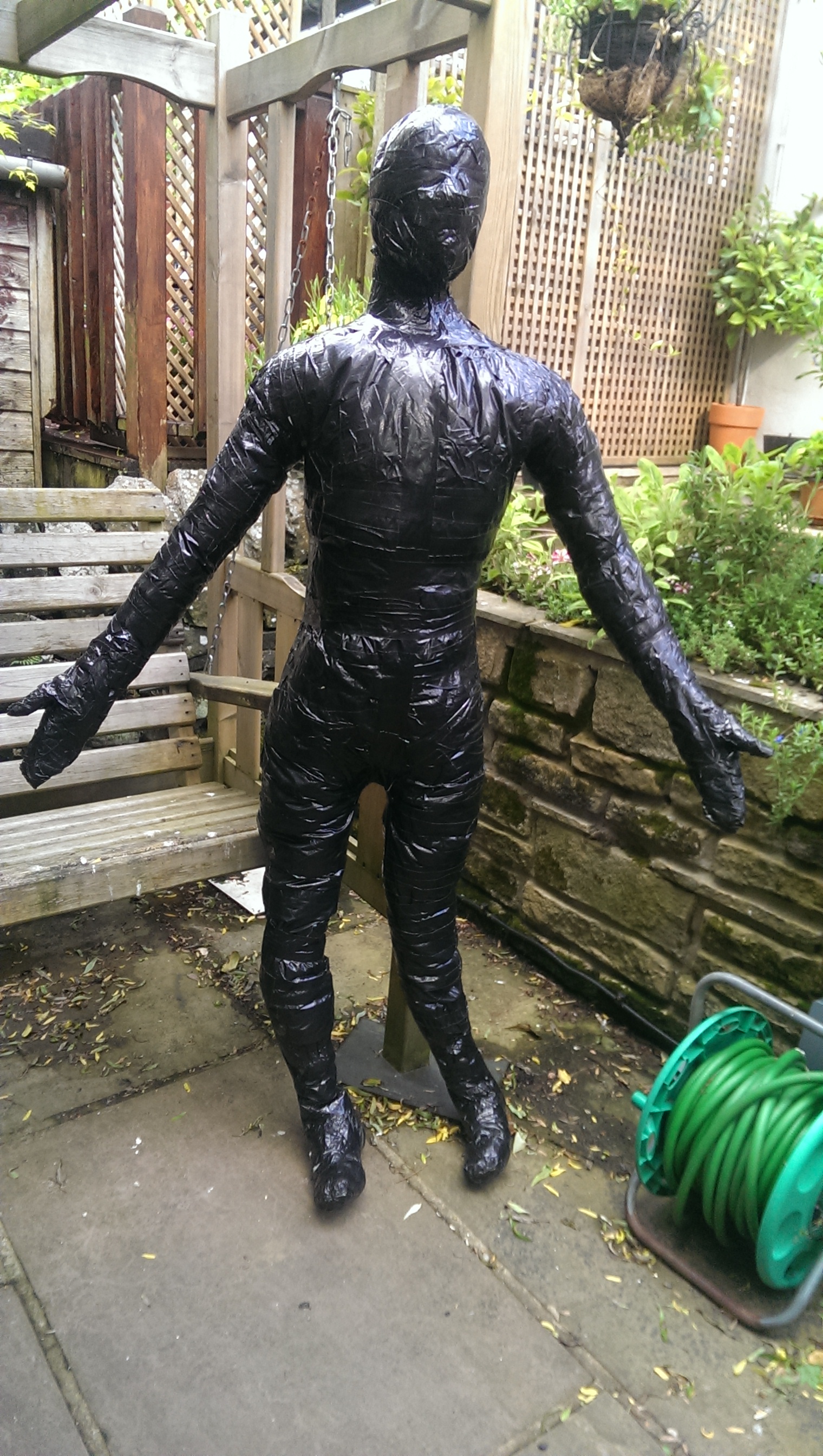

Dummy!

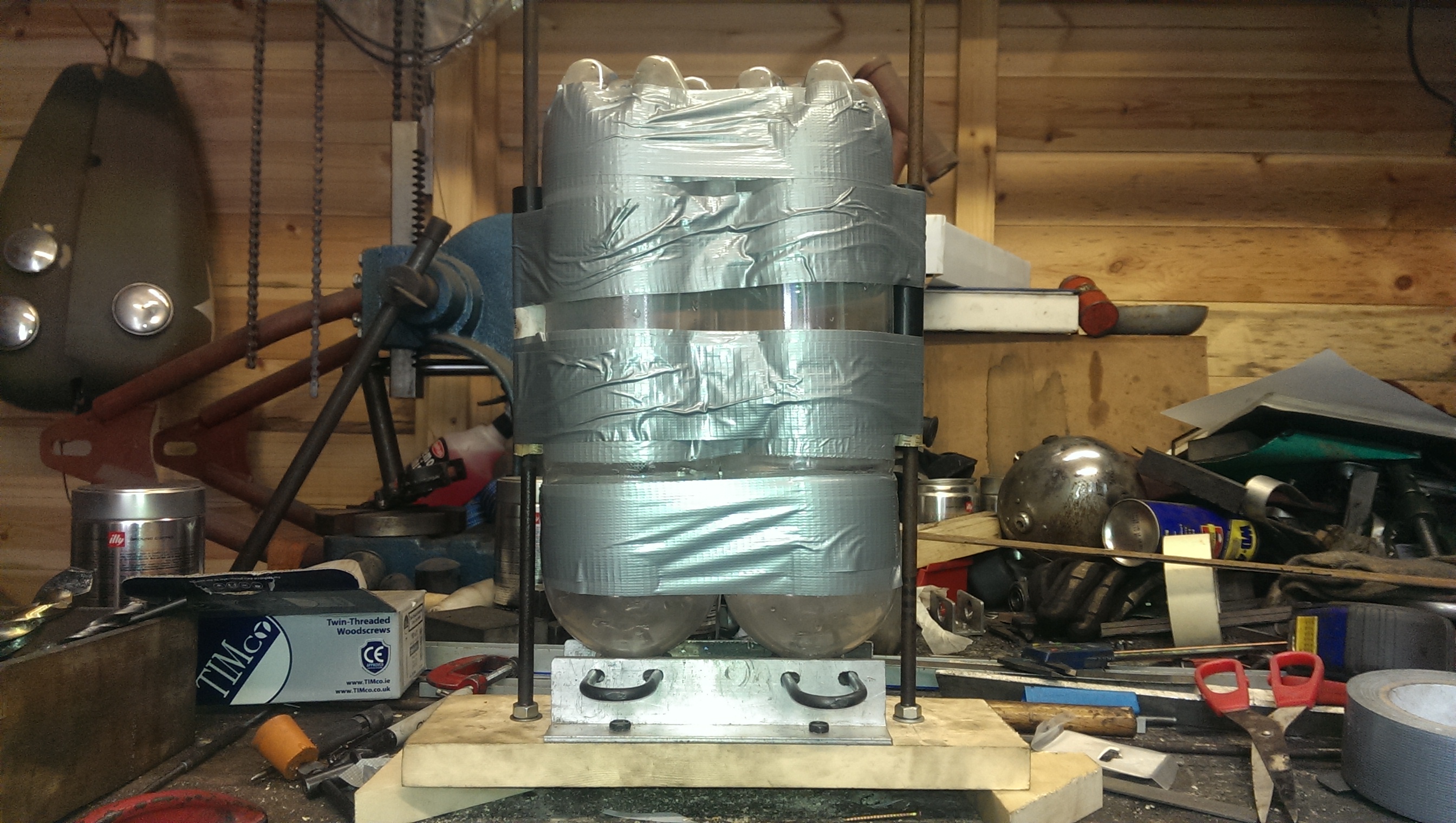

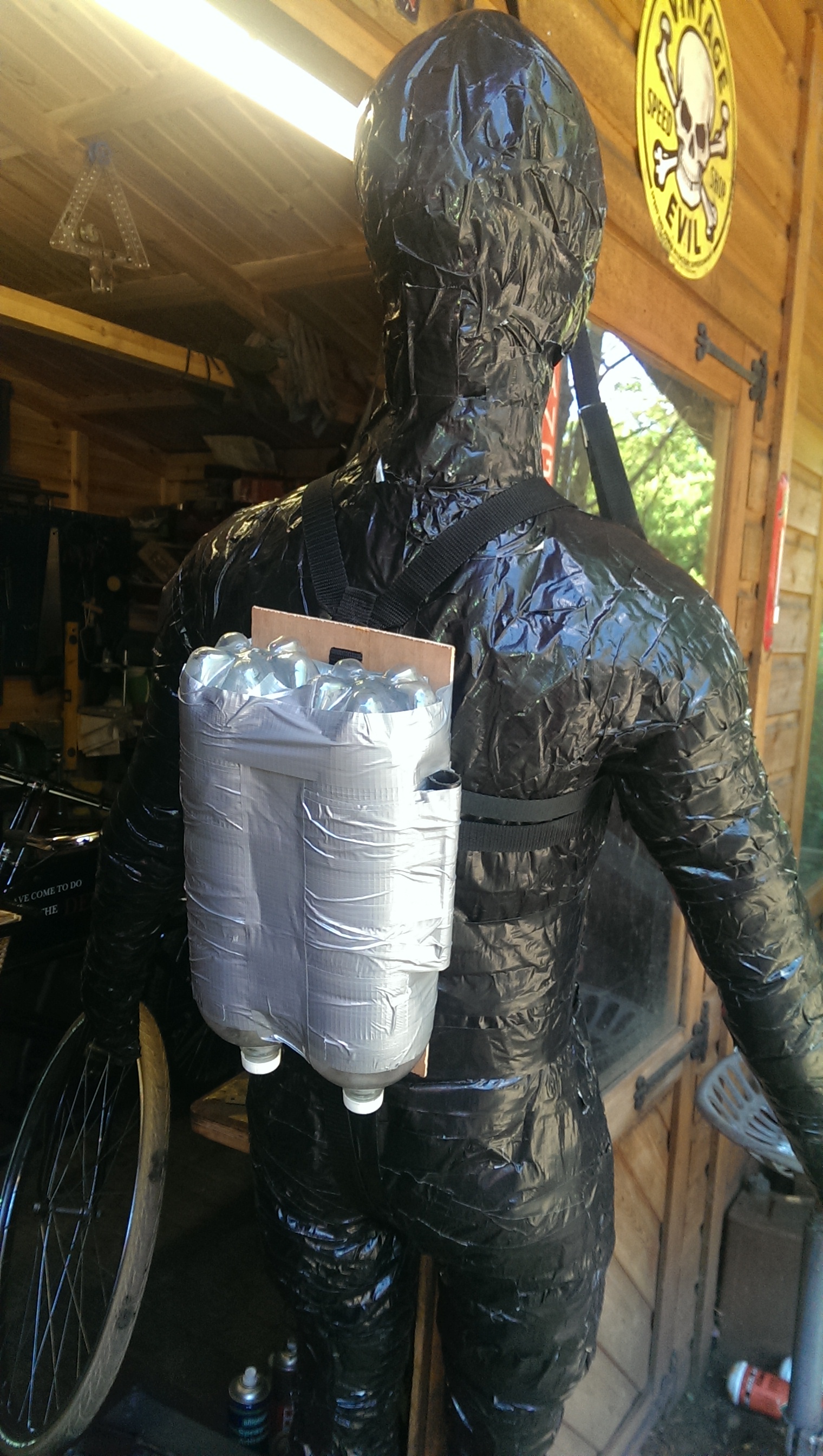

rocket pack with guide rods

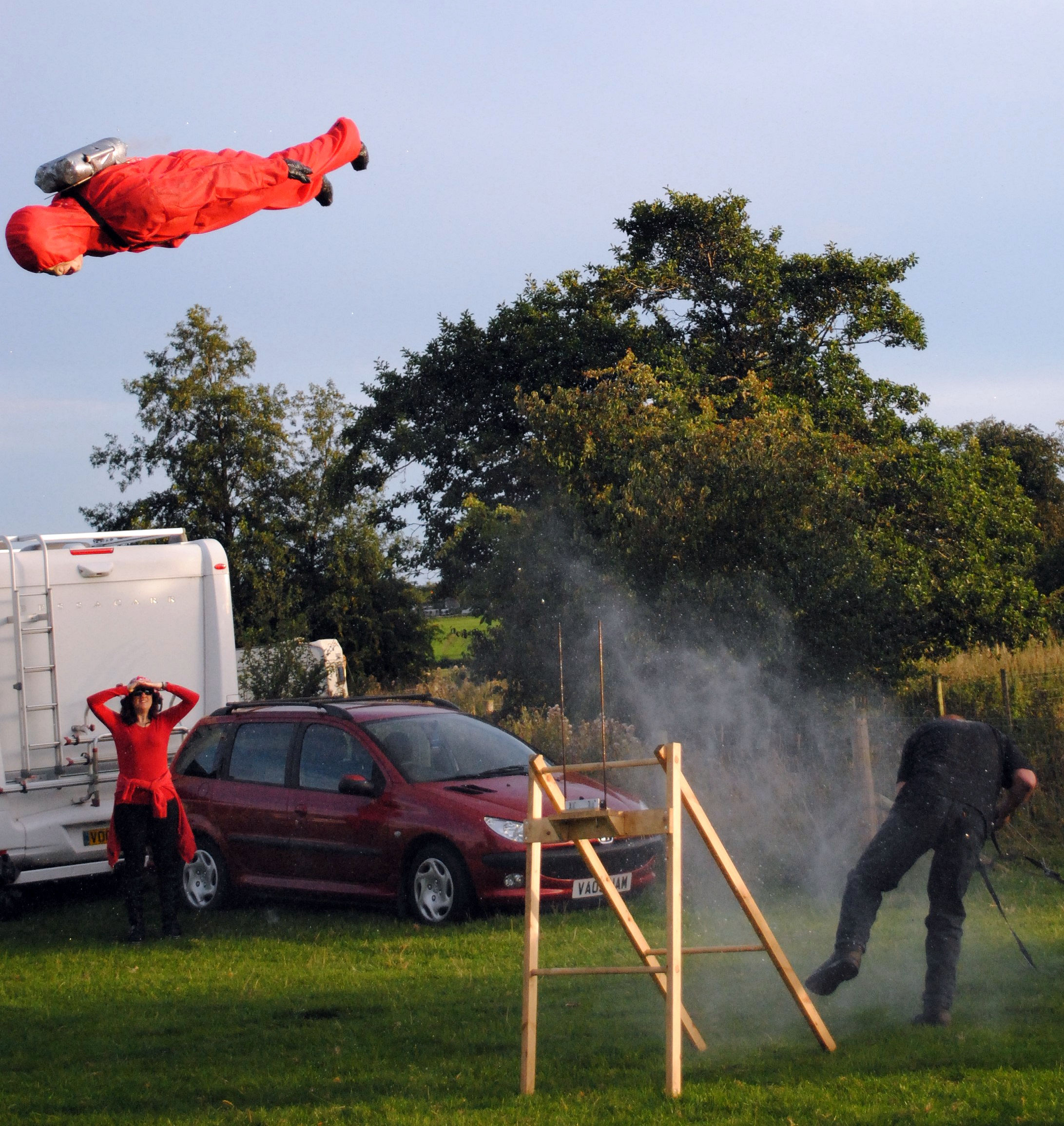

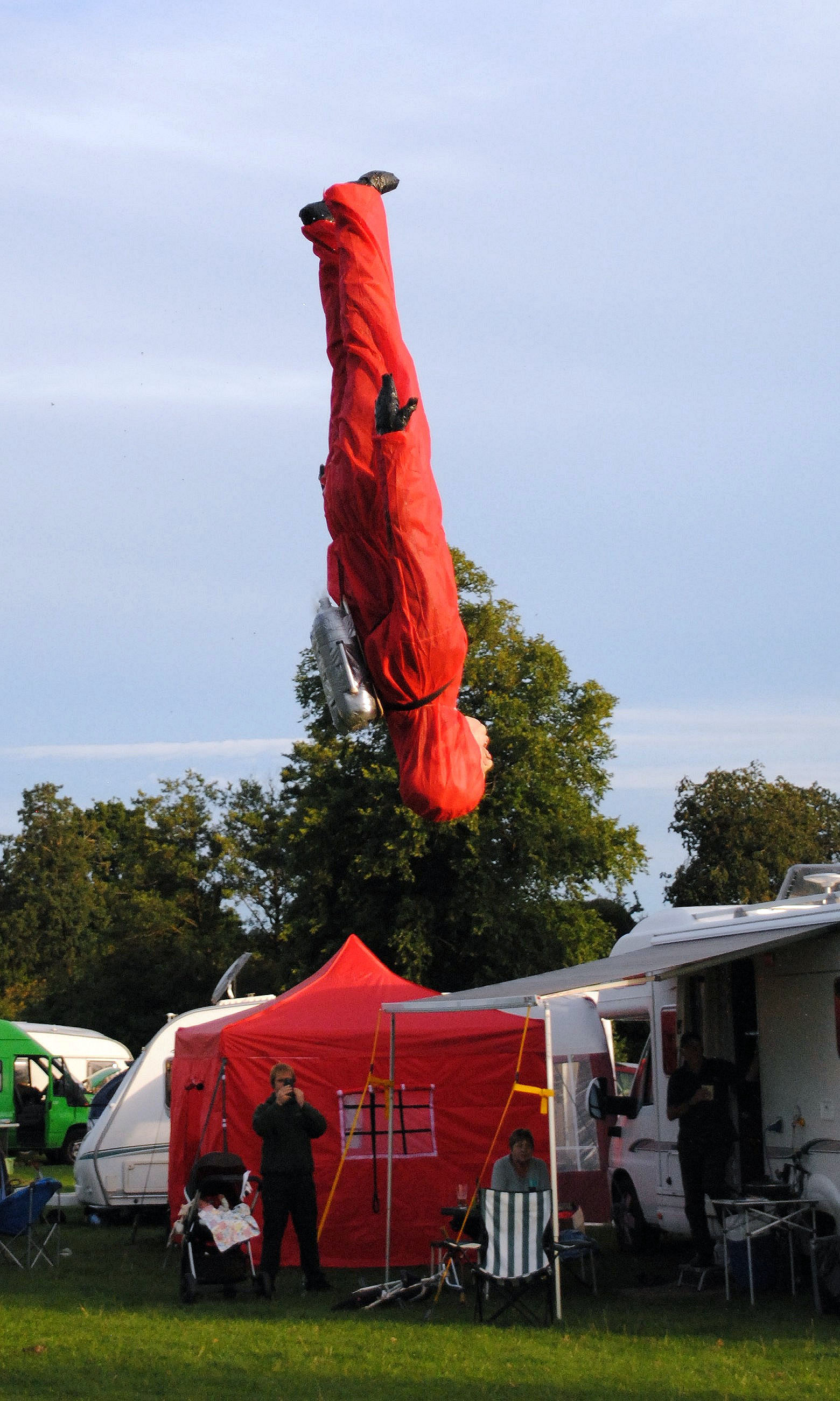

to infinity and beyond!

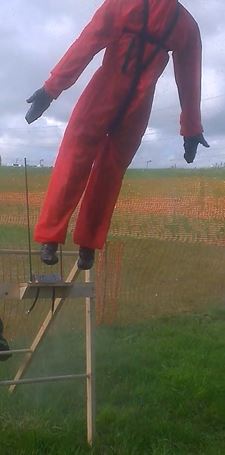

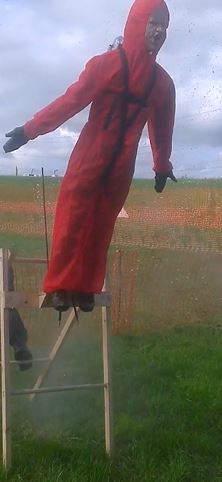

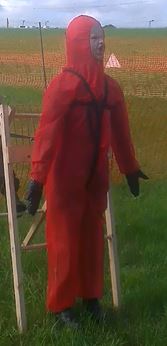

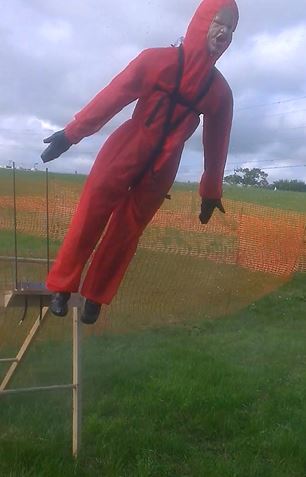

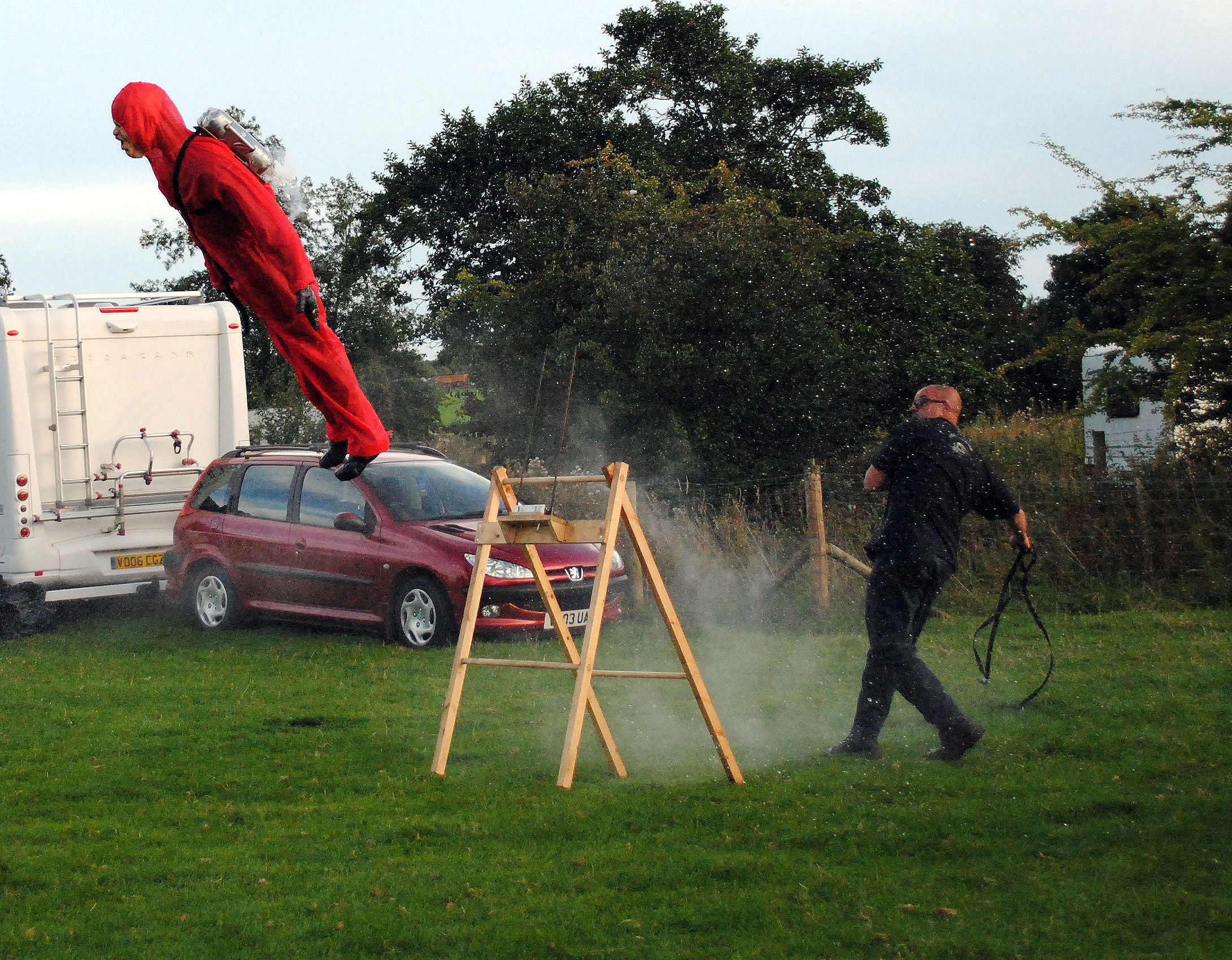

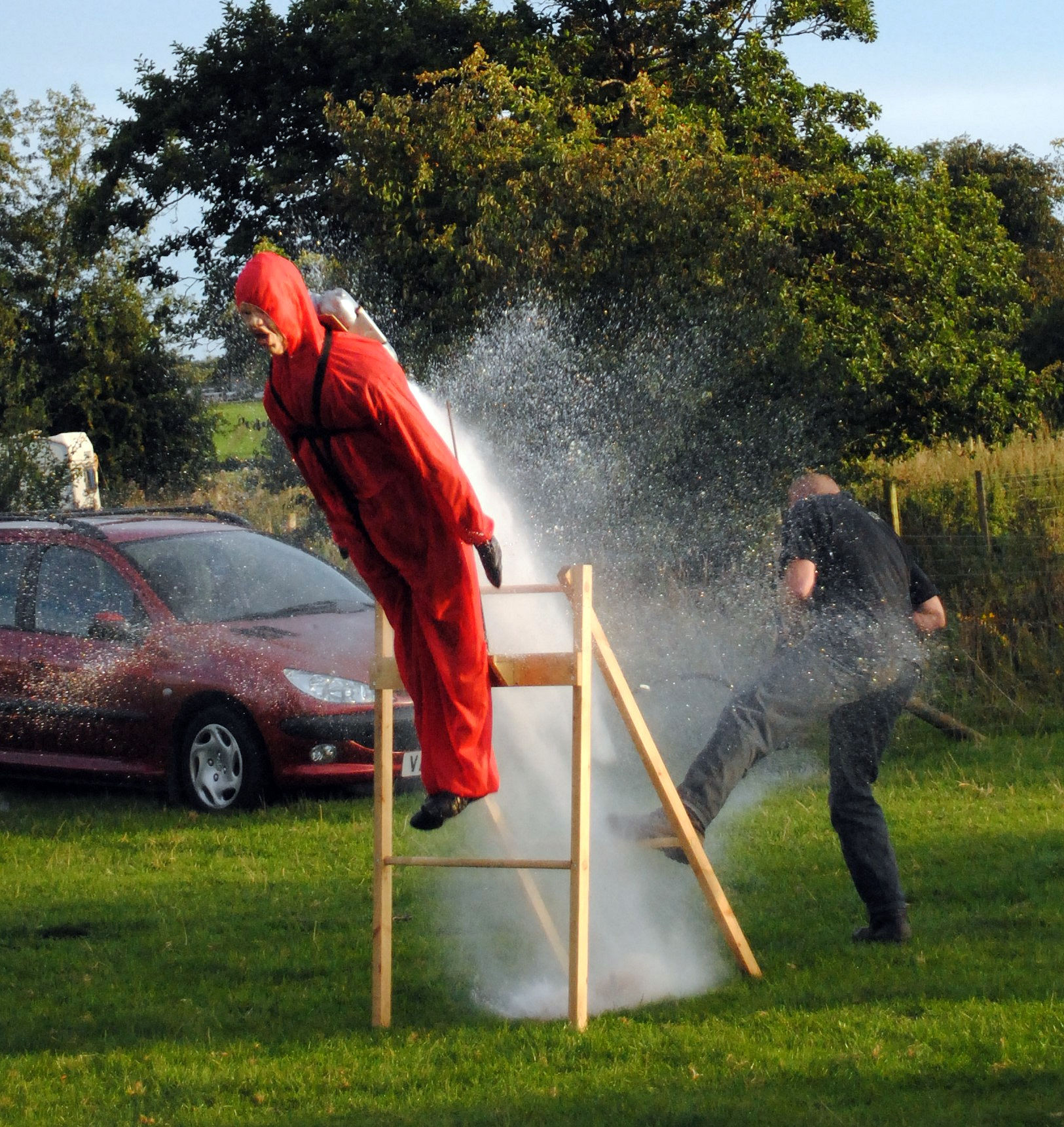

launch sequence!

pictures courtesy of Joy Whitehead

Home


Movies

  LAUNCH 20/6/15

LAUNCH 25/7/15 ~ FRONT VIEW

LAUNCH 25/7/15 ~ REAR VIEW

Home


Test log

Date  Approx Height achieved comments
14/6/15 4ft  can't get enough pressure into the rocket pack; air leaks in the system.
20/6/15 6ft? new air filling system works, need to experiment with volume and pressure
20/7/5 15-20ft? wow, that sucker went but spun in the air!
25/7/15 15-20ft? good flight but need to get higher. stiff wind  may have effected flight
29/8/15 15ft? need to get more pressure in the bottles!


Home


Questions

    If you have to ask why? then you will never understand...........

Q. WHY!!!!!

A. Because, just because.

Q. why not us a divers cylinder to fil the bottles?

A. I want to keep it 'real' and cheap! need to get a air rifle pump!

Q.

A.
